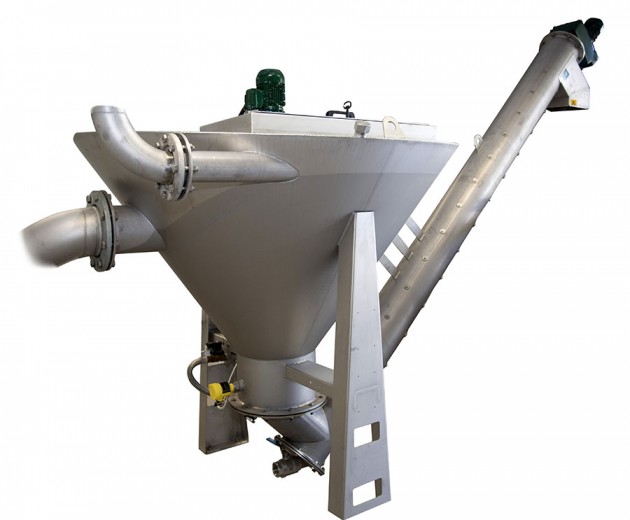

Sand Washer

Sand Washer ST separates, washes & dewaters sand from water. Street sand, filter sand and similar materials can be handled.

The sand/water mix is pumped or fed into the separatation tank where sand settles to the washing zone and is mechanically agitated and flushed. After washing the screw conveyor dewaters & conveys the sand. Excess water during pumping flows out over a weir and is led out. The organic material is led out through the same outlet.

- Selectable agitation technologies. Vibrator, Mixer, Air/water injector.

- Selectable sand level measuring. Pressure sensor, Load cell, Sonar.

- Maximum volume and surface enables use as ”combi unit” grit trap.

- Dry send feed version.

- Made of robust thick high quality stainless material.

- Enclosed, safe & hygienic with easy to open access doors.

Capacity: 5-50 L/sec
Ignition Loss: 1-5%
