Wash Screw

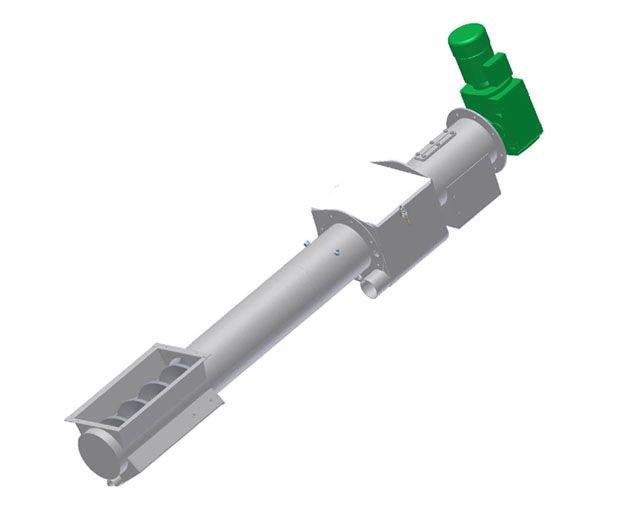

Wash Screw WP is a combined pulling conveyor and wash press for screenings and wet waste.

The material is conveyed to the wash press zone where a resistance gives retention time for washing and compaction. The material is partly shredded during discharge.

- Combined conveyor and wash press eliminates the need for additional conveyors.

- Robust screw spiral and thick wear bars.

- Compact design with selectable drive unit provides flexibility.

- Enclosed, safe & hygienic.

Length 1000-10000mm
Diameter 200-400mm
Inlet length 500-3000mm
Angle 0-90 deg
Dryness 30-40%
Capacity 0.5-4m3/h
