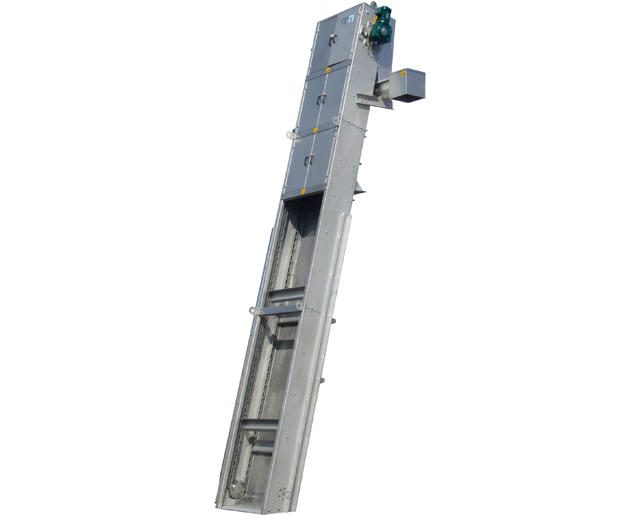

Multi Rake Screen

Multi Rake MR is a modern mechanically raked coarse bar screen that separates debris and rubbish from influent.

Typical installations in pump stations, water intakes, and wastewater treatment plants.

Conveyor chain drive with multiple rakes allows for fast cleaning cycles yielding high flow and conveying capacities.

- Curved bars at the bottom for higher capacity and optimum material conveying.

- Replaceable bars, spacing and rake elements.

- Stainless steel chains and sprockets.

- Module section design for simple installation and delivery.

- Quality construction from thick certified stainless material.

- Enclosed, safe & hygienic with easy to open access doors.

Discharge height 1-50m
Width 500-4000mm
Bar spacing 6-50mm
Capacity 10-10000l/s
